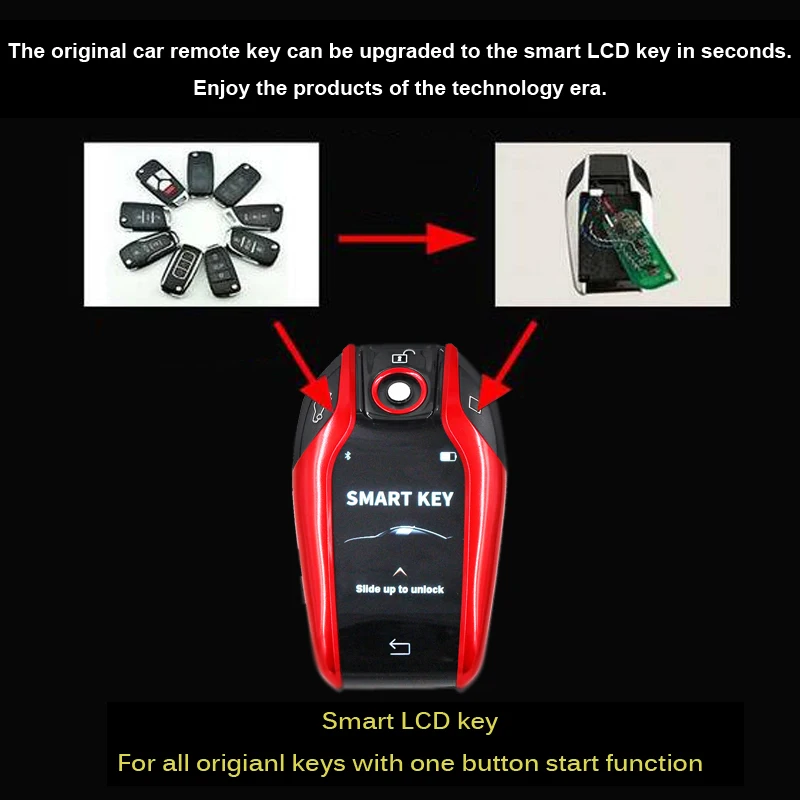

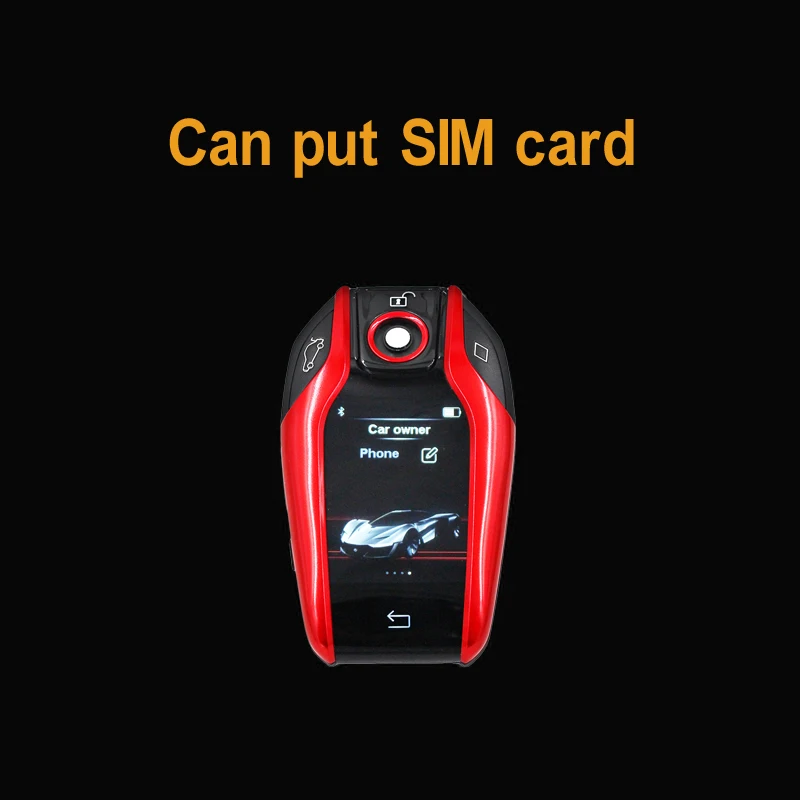

Modified Boutique Universal Smart Remote Car Key W/ LCD Screen for all original cars with one-key start function free with car logo

Descriptions:

1-100% brand new and high quality modified key shell with LCD screen.

2-A professional locksmith needs to weld the original key remote control board.

3-LCD key functions: unlock, lock, switch the tail box.

4-Does not support mobile APP key, no comfortable entry function.

5-Suitable for all original cars with one-key start function, not suitable for all manual direct-plug car keys.

6-Please confirm whether you have a key start function before purchasing. It is best to send a picture of your original key to confirm. Thank you for your inquiry.
7- Free with car logo ( pls contact us which car logo you need )

whatsApp +8613528846322

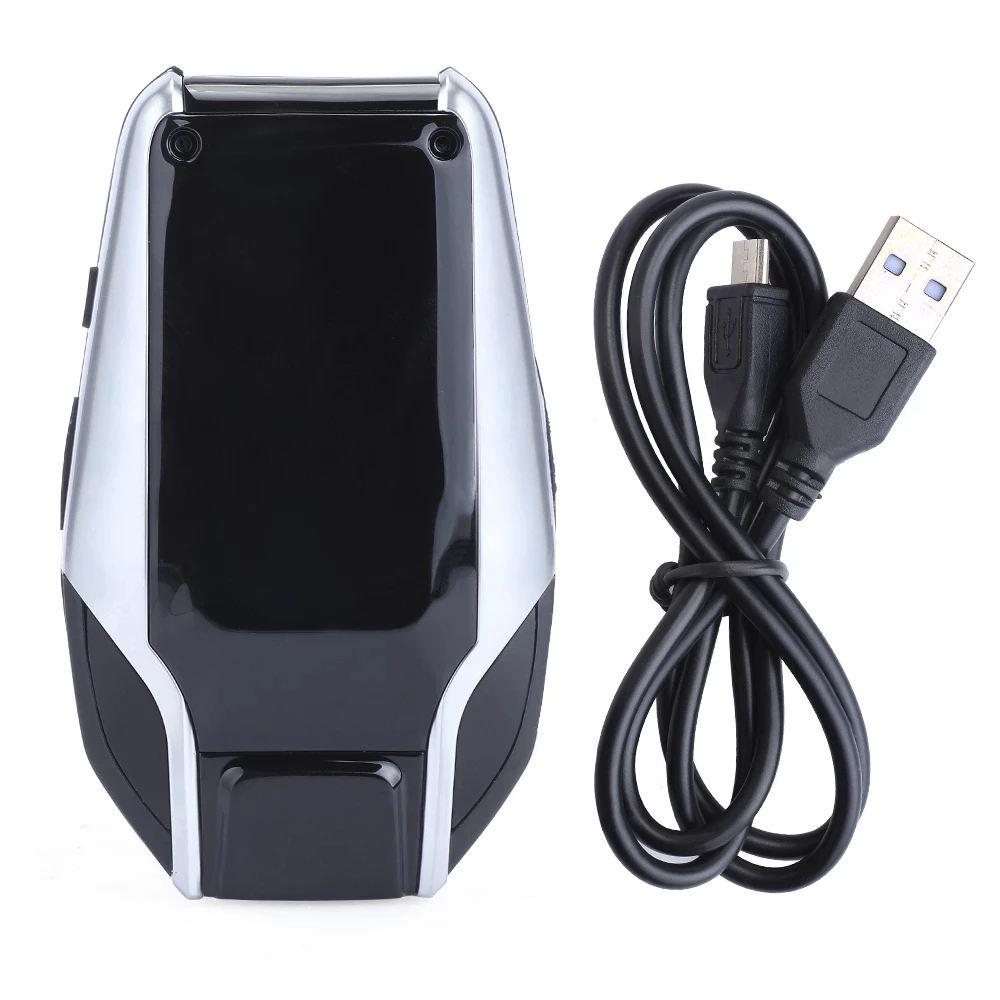

Packaging:

1pc key shell with Led screen


Note:

Suitable for all original cars with one-key start function

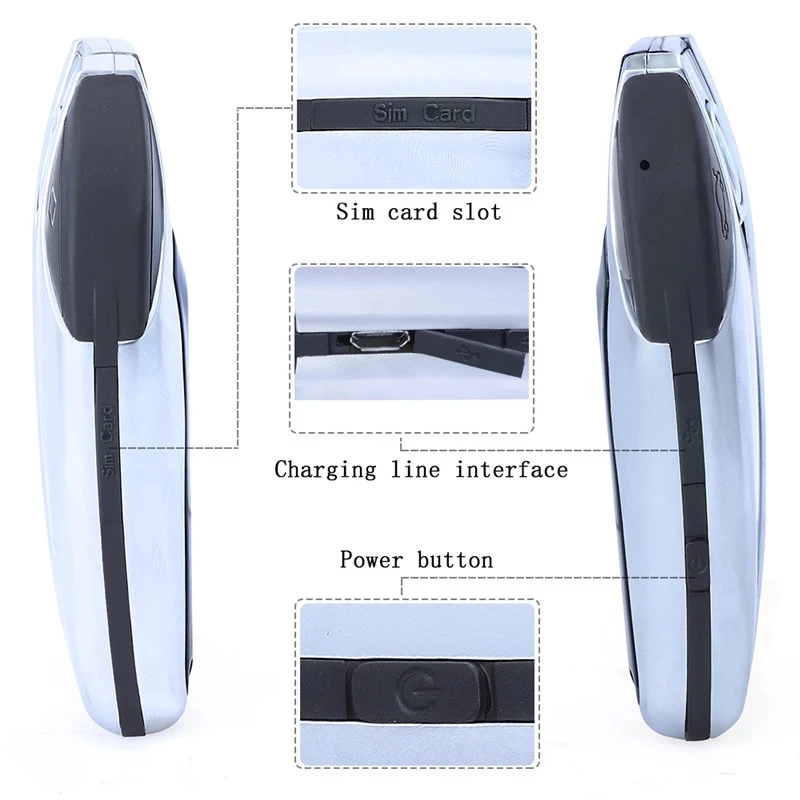

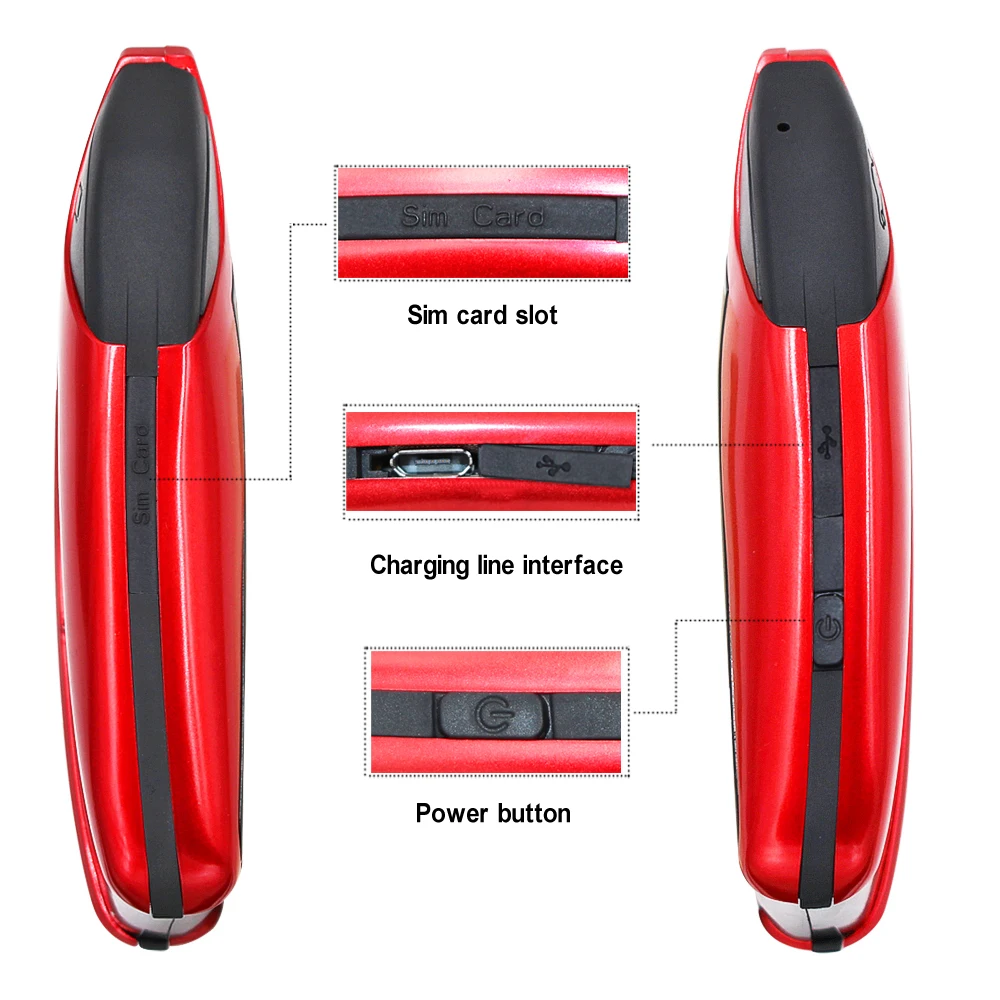

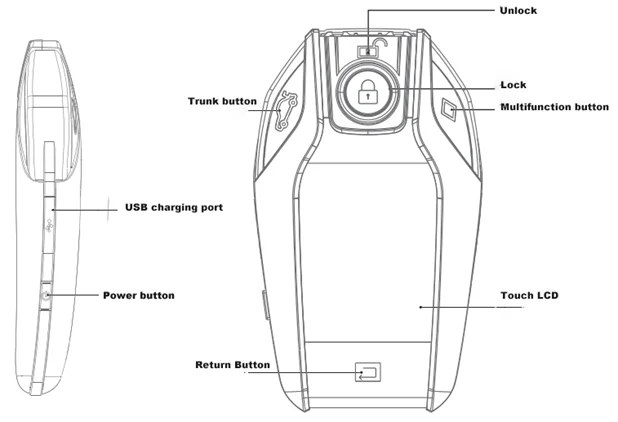

Button define

Notice: Long press power button and keep 3 seconds, then you can power on the Key.

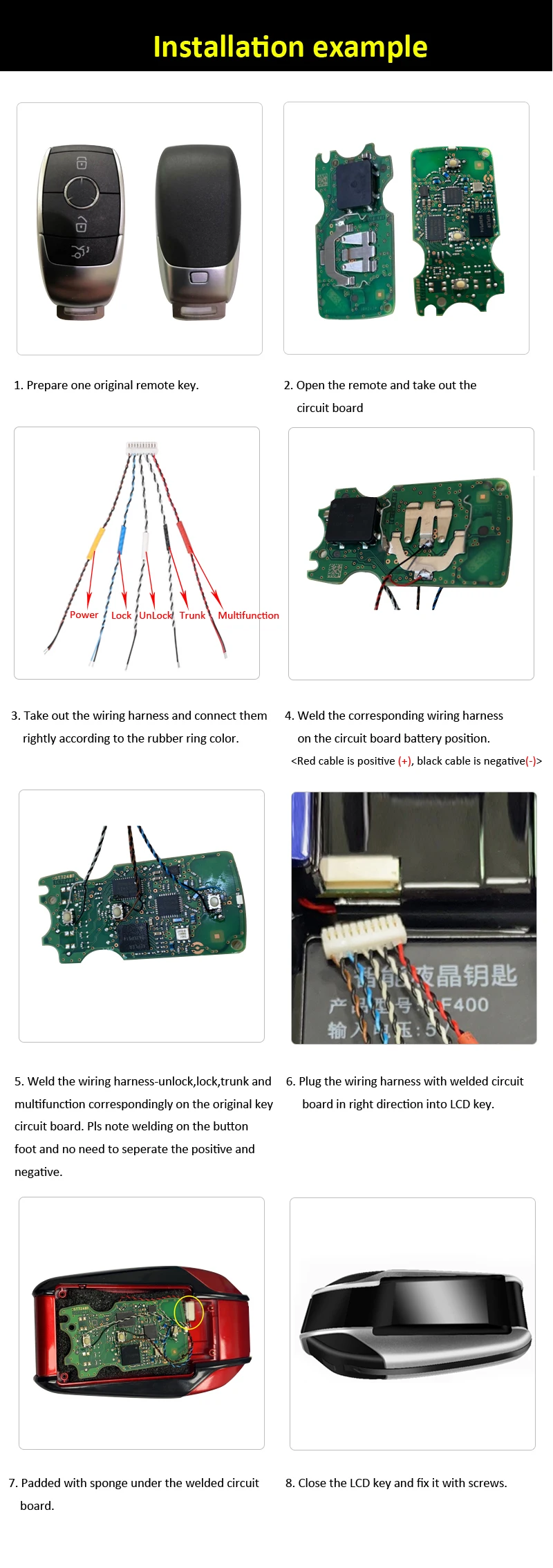

The steps of welding PCB

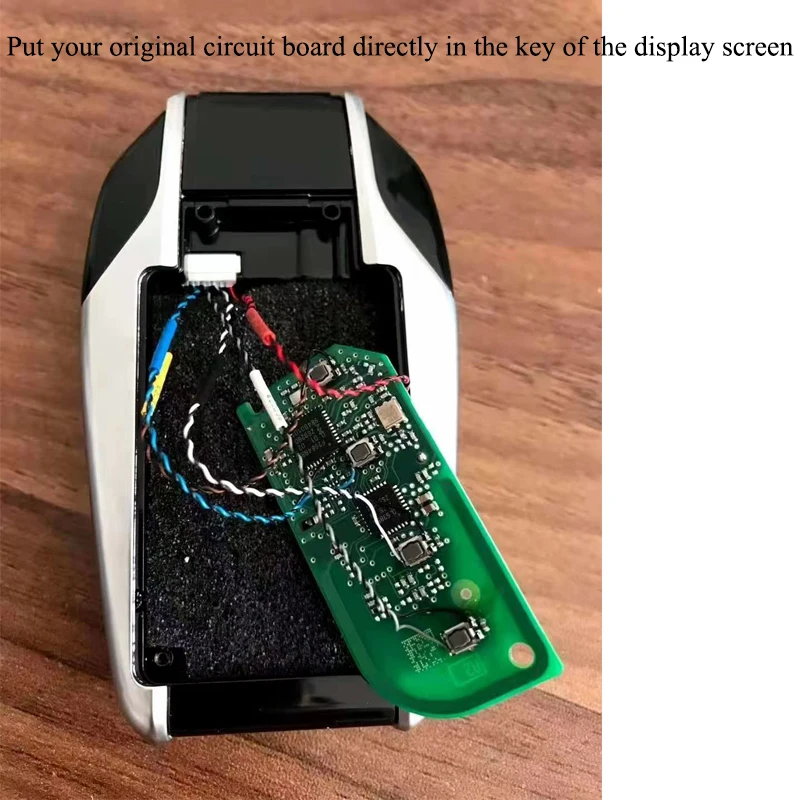

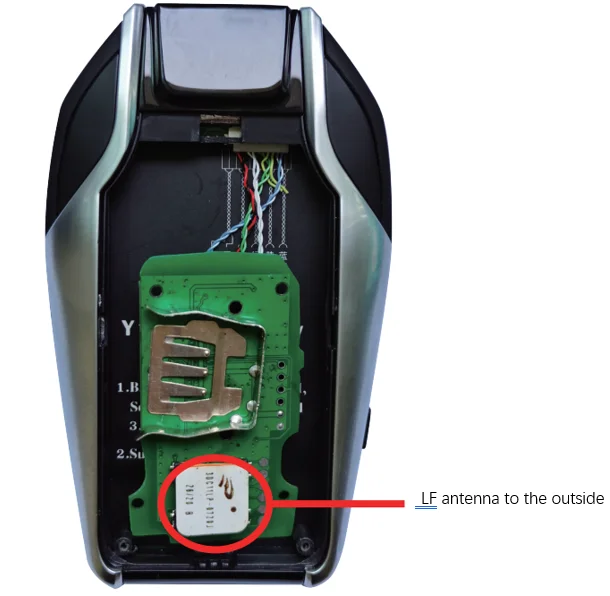

Step 1. Take out the main board of the original car key,

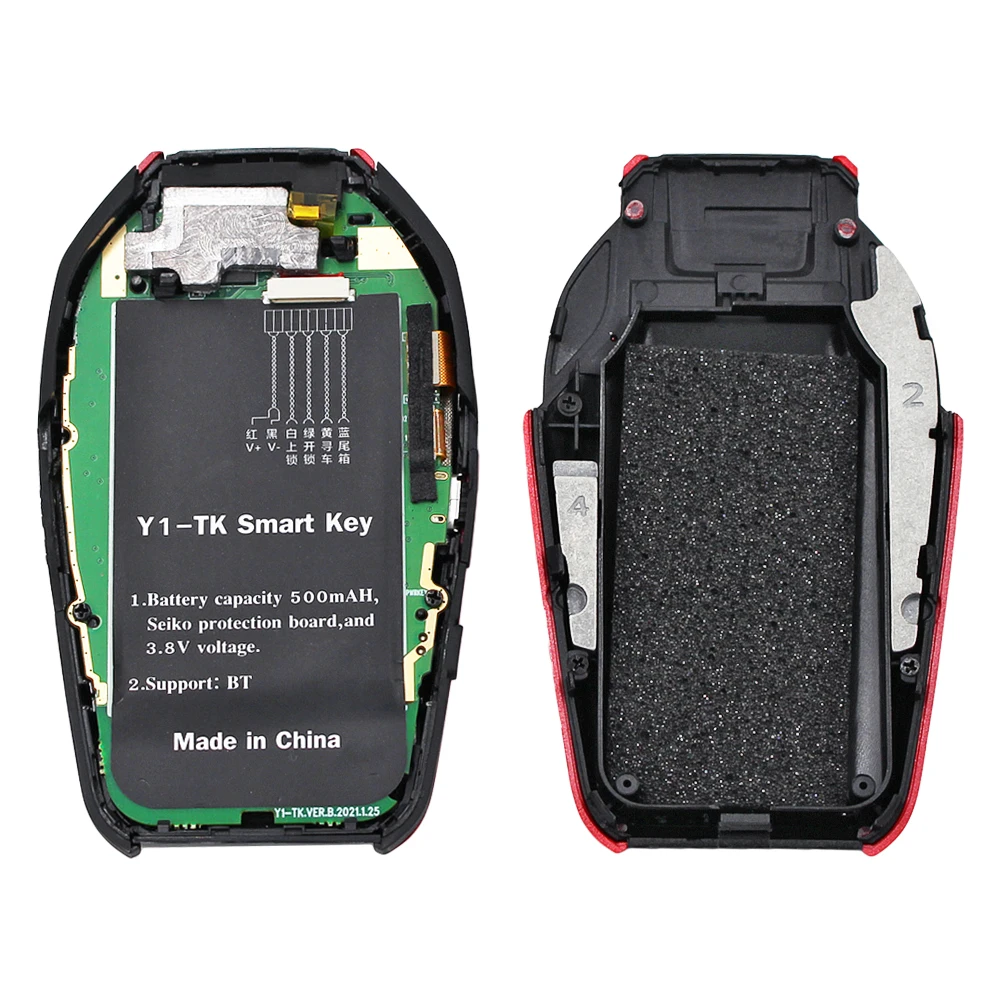

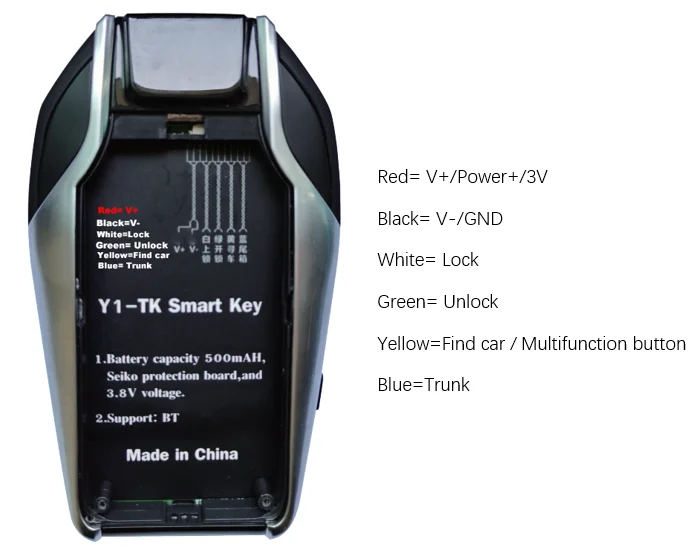

and weld the connecting wiring harness on each key function switch of the original car key board according to the diagram below.

Important:

When welding power harness, be sure to distinguish between positive and negative,
red is connected to the positive electrode, black is connected to the negative electrode.


Step 2. Connect with LCD key, according to with the direction of label in LCD key.

Function List

1 Lock/Unlock interface

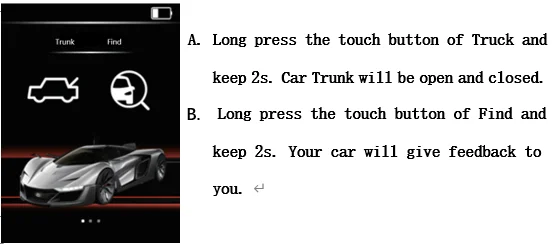

2. Trunk and Find car

Notice:

1. Your car will support the function of Trunk.

2. The car search function is applicable to the original car keys have four models

CAR model choice

You can choice your car logo through the menu of key. but if the key not include your car, you can set it as bellowing:

Step1. Power off

Step2. Design your car Logo, The Picture must use the size:

A. Size: Less 100kB

B. Pixel: 240*320

C. Picture name: car1 or car2

D. Picture form: .gif

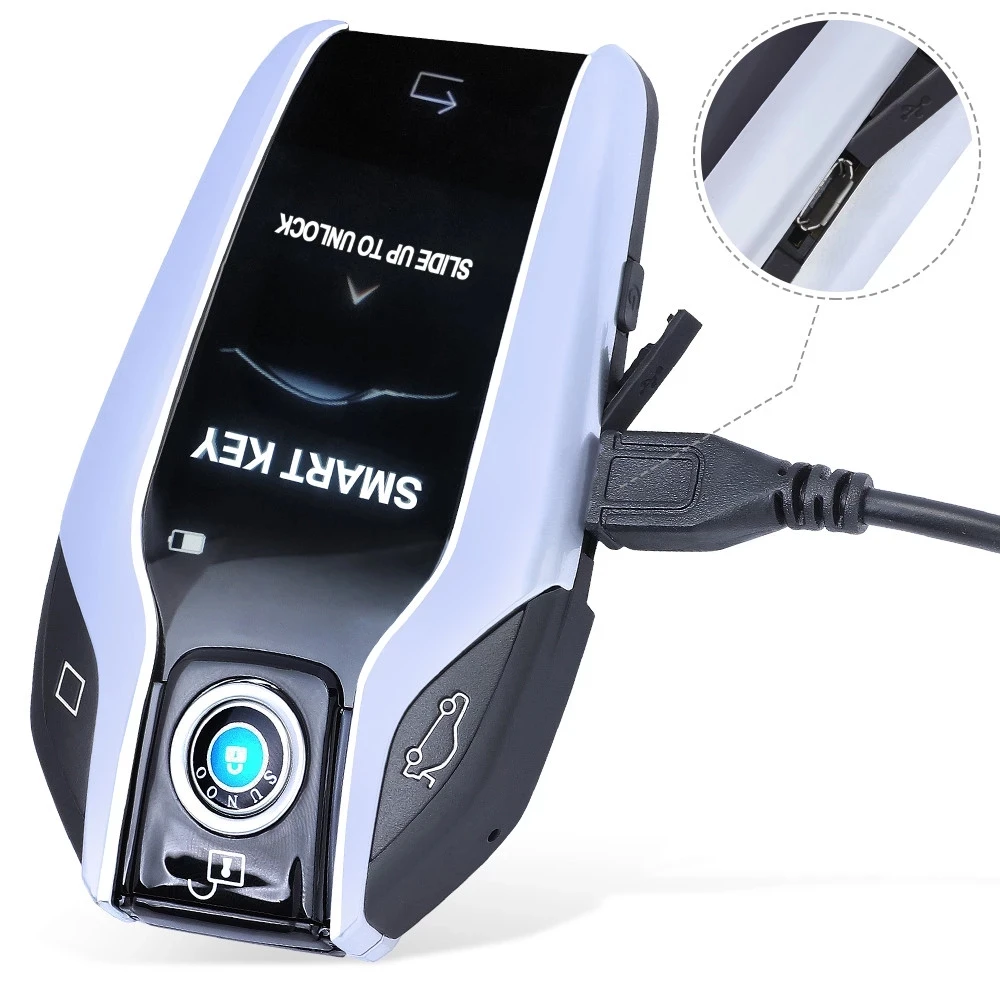

Step3. Connect USB cable with your PC, Then copy your picture to lcd key. you can select "user-defined1" or " user-defined2".

User information

You can save your phone number in the key.

A. Go into menu of key

B. Select User information

C. Write your phone number.
